Moroso Remote Oil Filter Mount

Brand: Moroso | Category: Oil Filters

Fitments

Select A Make to Narrow the Selection
CHEVROLET UNIVERSAL

If you need to relocate your Oil Filter Moroso offers Remote Oil Filter Mounts to make your life that much easier.

Available as Standard and Large diameter Mounts.

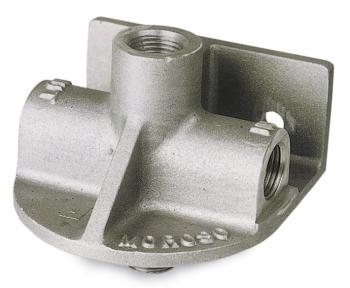

Standard Diameter

Excellent choice for dry sump oiling systems or wherever installation limitations require a remote mounted filter
Cast aluminum design tapped for 1/2” NPT inlet and outlet pipe adapters and uses spin-on type oil filters
Center port available for pressure or temperature gauge plumbing

Large Diameter

Machined from 6061-T6 billet aluminum for exceptional strength and weight reduction (1.3 lbs without fittings)
Compact, low-profile design (3/4” body height) facilitates installation in crowded areas; includes two 3/8”-16 threaded holes on backside for mounting
Blue anodized finish resists corrosion and maintains brilliance over time
Includes two screw-in adapters to accept a wide range of large-diameter filters ibcluding Moroso No. 22465, Fram HP-6, Motorcraft FL 784, STP-43R, (Purolator PER 288/L30288,) (ACPF1054,) and (WIX 51742)
-12AN inlet and outlet threaded ports are positioned vertically to improve laminar flow
Accepts -12AN threaded fittings with O-rings; fittings can also be welded in place
